MyHotspot- Wireless-LAN for Hotels and Cafés!
Give your customers the flexibility and extra mobility with Wireless Internet Access
MyHotspot is a professional Wireless LAN software solution for providing internet access to your customers. Customers will be redirected to your login page to authenticate with user account or a prepaid-code before getting the Internet access. The PayPal payment option allows your customers to create and pay for network access directly. The software controls download, upload, data transfer, time usage, visited pages. MyHotSpot Billing software runs on your Windows PC, controls unlimited user or prepaid-code accounts, and displays data to customers on your self-branded pages.
MyHotspot billing software is the definitive tool for managing your public WIFI-HotSpot in internet cafes, shools, hotels, bistros or gaming cafe / game center.
Your customer get a free internet access by login with their social account. Default Free Time 1 hour.
1. Download MyHotSpot and install it, a reboot is required. Make sure your WiFi hotspot is running after the restart.
2. Launch the program and at the Network Configuration window, make sure Automatic is selected and choose the adapter that connects to the internet at the top drop down menu and the hotspot below. Click Next.
Hardware installation:
Importanti dito is yung Source ng Internet ay hindi 192.168.0.1 or 192.168.137.1 , dahil sa ICS yung taga bato dapat ng internet ang siyang may IP 192.168.137.1 example dito is yung adhoc or WLAN2 192.168.137.1 siya. WLAN naman is naka konek sa modem kong SmartBro kaya 192.168.15.7 siya.
Check This post how to Create Adhoc and about ICS
http://www.gadget-technolog.blogspot.com/2015/05/how-to-create-wireless-ad-hochotspot-on.html
Shared over LAN , from WLAN to LAN
ROUTER SETTING DISABLED DHCP SERVER
(KASI PAG NAKA ON YUNG DCHP SERVER WALA KA CONTROL DI NAGANA YUNG REDIRECT SA LOGIN PORTAL KAYA NAKAKA BROWSE AGAD YUNG CLIENT )

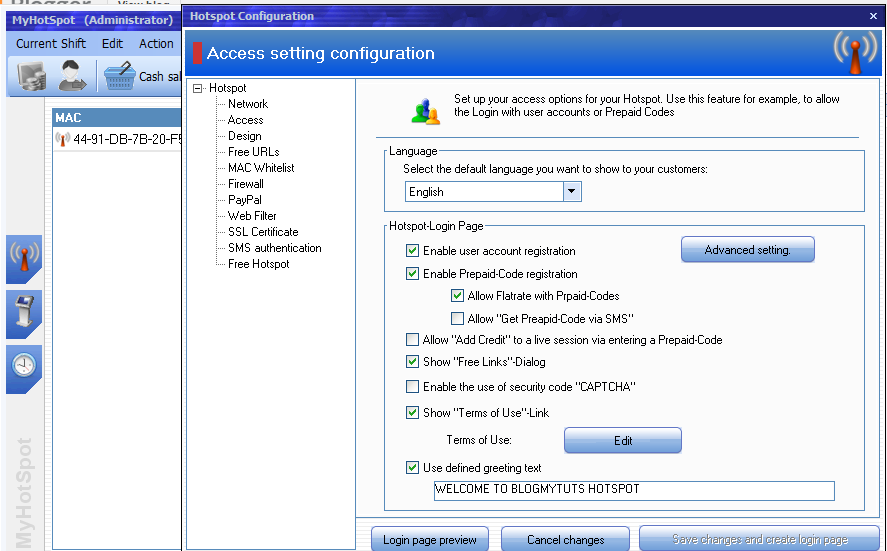

4. Here, we’re going to enable a simple test login to verify the connection works. Click on the Edit menu -> Hotspot Configuration -> Access, then click the blue Advanced setting button. Tick “Enable guest-login”, adding a password is optional, click Close.
5. Like the previous hotspot software you need to now go to a device which can connect to the hotspot, such as another computer or tablet, connect to it , and then try to open a webpage. You should be greeted with the MyHotspot default login page… or Type on your browser this IP address 192.168.137.1
Pricing Go to Edit Tariff and security Change the Value like on this image. Just edit the Defaults.
Create Prepaid Code
MyHotSpot is setup to work with tariffs and payments which is fine if that’s what you want, more problematic if you just want to use access logins for time or bandwidth usage. What you will need to do is go to Edit -> “Tariffs and Security” and set all tariff rate options to zero money and then create a user from there. Once set correctly, it does work quite well. The icons down the left of the main window will show the log and information about who’s connected and duration/traffic used.
On Firewall you can Block any port Example Clash of Clan TCP port 9339 then Disable it.
NOTE: If the Login Page is not working it means you have programs already using port 80, I suggest use a newly reformat PC or Laptops if you want to use this..
You may also want to read:
Supported searches :
◾Free Hotspot
◾Free WiFi Hotspot
Give your customers the flexibility and extra mobility with Wireless Internet Access
MyHotspot is a professional Wireless LAN software solution for providing internet access to your customers. Customers will be redirected to your login page to authenticate with user account or a prepaid-code before getting the Internet access. The PayPal payment option allows your customers to create and pay for network access directly. The software controls download, upload, data transfer, time usage, visited pages. MyHotSpot Billing software runs on your Windows PC, controls unlimited user or prepaid-code accounts, and displays data to customers on your self-branded pages.
MyHotspot billing software is the definitive tool for managing your public WIFI-HotSpot in internet cafes, shools, hotels, bistros or gaming cafe / game center.
How it works this Hotspot system?
Login page
When a customer connects to your network and type any website address, login page will be displayed in browser and prompted to authenticate with user or code-account
Mobile login page
MyHotspot is specifically designed for use on mobile devices (e.g Smartphones,Tabletts). MyHotspot detect if the customer is on a mobile or desktop device and then redirect them to the appropriate website version.
Error dialog
The Error dialog will be automatically displayed by entering a invalid data, expired or disabled account.
Free Websites and Free Access
MyHotspot software gives you ability to specify free Websites your users will be able to open without authentication.
Your customer get a free internet access by login with their social account. Default Free Time 1 hour.
Successful Login
If the customer entered correct details, login would be granted. Infobox is useful as it keeps a customer informed about the current balance an remaining time.
Installation WLAN to WLAN2 adhoc (192.168.137.1)
WLAN or LAN1 TO LAN2 (192.168.137.1) Router (192.168.137.2) must be disabled DHCP
1. Download MyHotSpot and install it, a reboot is required. Make sure your WiFi hotspot is running after the restart.
(Skip ads in 5 seconds)
Software installation:
- Please make sure to remove the program SKYPE "skype.exe" from your computer. this program use the port 80. Hindi Kasi Mag wowork yung Portal
- Start the setup file on your windows PC to Install Myhotspot software.
- The Internet Connection Sharing (ICS) must be enabled During the installation process. The network wizard will be launched.
- You must restart your computer after installing MyHotspot.
- If you use Windows Vista/7/8/10 make sure to run MyHotspot with administrator rights. Right click on the program, and click on "Run as administrator".
2. Launch the program and at the Network Configuration window, make sure Automatic is selected and choose the adapter that connects to the internet at the top drop down menu and the hotspot below. Click Next.
Hardware installation:
- Connect the first network card (LAN1) or the USB surf stick to the Internet and make sure that the Internet connection is working on your computer, and the IP assigned to this network card is not "192.168.0.x" and not "192.168.137.x".
- Connect the second network card (LAN2) to LAN port (not to WAN port) of your wireless access point or wireless router.
(Example: NETGEAR-WLAN-Router) - Configuration of the Wireless Access Point:
- Disable by default the wireless security for your router or access point. You can Optionally encrypt the access to your Wireless Router or Access Point.
(Example: NETGEAR-WLAN-Router) - You will also have to specify a static IP addresse of the LAN port of your Wireless access point.You'll need to http in to your access point and assign the new IP address "192.168.0.2" by XP/Vista or "192.168.137.2" by Win7/8/10.
(Example: NETGEAR-WLAN-Router) - Subnet mask: 255.255.255.0
- If you use a wireless router make sure to disable DHCP-Server. You'll need to http in to your wireless router and manually disable the DHCP-Server.
(Example: NETGEAR-WLAN-Router)
- Disable by default the wireless security for your router or access point. You can Optionally encrypt the access to your Wireless Router or Access Point.
Importanti dito is yung Source ng Internet ay hindi 192.168.0.1 or 192.168.137.1 , dahil sa ICS yung taga bato dapat ng internet ang siyang may IP 192.168.137.1 example dito is yung adhoc or WLAN2 192.168.137.1 siya. WLAN naman is naka konek sa modem kong SmartBro kaya 192.168.15.7 siya.
Check This post how to Create Adhoc and about ICS
http://www.gadget-technolog.blogspot.com/2015/05/how-to-create-wireless-ad-hochotspot-on.html
Shared over LAN , from WLAN to LAN
ROUTER SETTING DISABLED DHCP SERVER
(KASI PAG NAKA ON YUNG DCHP SERVER WALA KA CONTROL DI NAGANA YUNG REDIRECT SA LOGIN PORTAL KAYA NAKAKA BROWSE AGAD YUNG CLIENT )
4. Here, we’re going to enable a simple test login to verify the connection works. Click on the Edit menu -> Hotspot Configuration -> Access, then click the blue Advanced setting button. Tick “Enable guest-login”, adding a password is optional, click Close.
5. Like the previous hotspot software you need to now go to a device which can connect to the hotspot, such as another computer or tablet, connect to it , and then try to open a webpage. You should be greeted with the MyHotspot default login page… or Type on your browser this IP address 192.168.137.1
Management
MyHotspot provides you with a table overview containing all internet sessions on you WIFI-Hotspot. You can use this manager to end a internet session.
Pricing Go to Edit Tariff and security Change the Value like on this image. Just edit the Defaults.
Create Prepaid Code
Hotspot Configuration
Here you can customize your login portal page set Free Website Free Login via social network and Firewall etc..MyHotSpot is setup to work with tariffs and payments which is fine if that’s what you want, more problematic if you just want to use access logins for time or bandwidth usage. What you will need to do is go to Edit -> “Tariffs and Security” and set all tariff rate options to zero money and then create a user from there. Once set correctly, it does work quite well. The icons down the left of the main window will show the log and information about who’s connected and duration/traffic used.
Server Configuration
wala naman masiyadong gagalawin dito yung currency Php or printer lang..
On Firewall you can Block any port Example Clash of Clan TCP port 9339 then Disable it.
NOTE: If the Login Page is not working it means you have programs already using port 80, I suggest use a newly reformat PC or Laptops if you want to use this..
